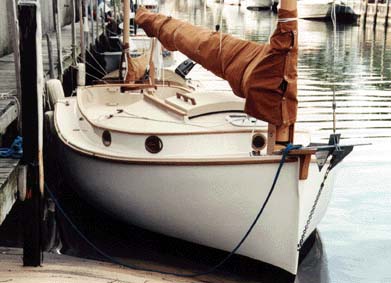

Thom Cat 19
Our 19-foot Thom Cat is ideal
for people looking to do a little cruising. The cabin
has sitting headroom for a 6' 8" person, and the
bunks measure 10 feet so there is ample room for you
to sleep. The cockpit is large enough for eight people
to sit comfortably and not get in each others way. This
Cat is the same size as many 22-foot to 24-foot sloops.
Compare its displacement rather than its length.
Click to Download
Brochure |
|
 Sail
and cover: White sail (made in the USA),
two sets of reef points, one line reefing for lower
reef, sail bag. Tan sail cover with cutouts for peak
halyard.
Fiberglass:
All hand-layed up, Isophthalic gelcoat, five layers
of mat and woven roving in hull and deck. White hull,
tan deck with white cabin sides, deck non-skid molded
in. Molded cockpit with tow lockable hatches. Deck
fiberglass to the hull all around. Moulded headliner,
hull liner and bunks. Centerboard and rudder solid
fiberglass. Laminated ash and mahogany tiller.
Bottom:
Primed and painted, includes centerboad and trunk.
Teak:
All exterior trim is solid teak; rubrails, handrails,
brow on cabin sides, cockpit coaming caps, hatch trim,
teak ply framed with solid teak drop board. Teak boom
crutch with brackets on each side of tiller.
Bronze:
All hardware is bronze including, four mooring cleats,
two halyard cleats, topping lift cleat, reefing line
cleat, two chocks, five fixed ports, traveler, hatch
hinges, hasps, forestay tang and triple gudgeons and
pintles.
 Spars:
All spars painted with polyurethane, buff color. Tapered
aluminum mast with top painted white, gaff and boom
slotted extrusion. Gaff saddle molded fiberglass.
Rigging:
Stainless steel forstay with bronze turnbuckle. Three
strand spun Dacron halyards, topping lit and mainsheet.
Mainsheet jam cleat. Halyards, topping lift and single
line reefing lines to cockpit. Lazy jacks, adjustable
fore and aft on boom. Harkin ball bearing blocks.

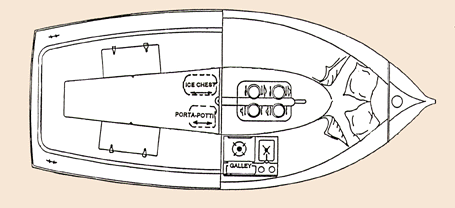

Cabin Interior:
Varnished ash wainscoting on cabin sides. Vanished
ash drop leaf table on centerboard trunk. Teak and
holly sole. Ash trimmed shelf on forward and aft bulkhead.
Two net hammocks. Seven lockers under bunks. Bunks
10’ long. 8'x3" thick cushions with washable
canvas covers. Double bunk option makes port bunk
45" wide. Optional Ice chest, port-a-potti and
galley unit slides under cockpit.
| Tanbark or Egyptian Cotton
colored Dacron Sail in lieu of whitel |
Egyptian Cotton Sail
Mast Tabernacle
Cruising Package - Sliding Galley
Cruising Package - Porta-Potti
Yanmar Inboard Diesel
|

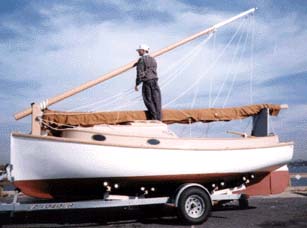

Mast tabernacle (enables
lowering of mast by one person, with boom sail
and running rigging in place) |
| Cockpit Tent-Sunshade,
8 feet x9 feet |
| Bowsprit, Teak with Anchor Roller,
Bobstay |
| Winter-trailering Cover,
made of Cordura (nylon) |
| Rope Deck Pipe (enables
storage of anchor line in forward locker next to
mast) |
| Anchor chocks on deck
(behind mast) |
| Opening Forward Porthole,
4 inch Bronze, with screen |
| Opening Hatch in cabin
top forward of sliding main hatch, with screen |
| Step, Bronze, on transom |
| Step, folding on rudder |
| Compass, 5 inch, Ritchie,
lighted, mounted on cabin bulkhead |
| Depth gauge with in-hull
transducer |
| Speed gauge |
| Cockpit cushions, 4 piece,
molded vinyl over closed cell foam, (no seams) |
| Double bunk filler cushion
with plywood insert, fits on port side of CB |
| Fixed head with holding
tank, Y-valve, aft end of port berth (Shortens berth
to 6 feet) |
| VHF Antenna, Installed
on mast, cable leads to aft end of cabin |
| Bilge pump electric, automatic |
| Bilge pump manual, diaphragm,
Whale |
| Name and hail port on
transom |
| Sikkens-Cetol finish on
all teak |
| Trailer galvanized, rolls,
disc brakes, disc brake lock out (when backing up),
Bearing Buddies, surge brakes |

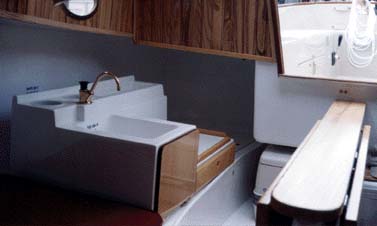

| Cruising Package: Slide-out
galley w/sink, brass pump, place for stove, collapsible
tanks, ice chest, port-a-potti |
| Lighting Package: Running
lights, masthead light, two brass cabin lights,
12 volt deep cycle battery in case, 6 circuit switch
panel (fused) |
| Outboard Bracket, SS,
lifts-up |
| Outboard Well, aft end
of cockpit on center, fairing plate around motor
shaft |
| Inboard Diesel, Yanmar
or Nanni 10 hp extra fuel and water filter |
| Launch Rig and Commission
in Amityville, NY |
|
